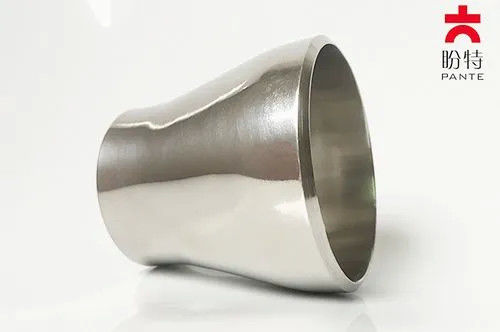

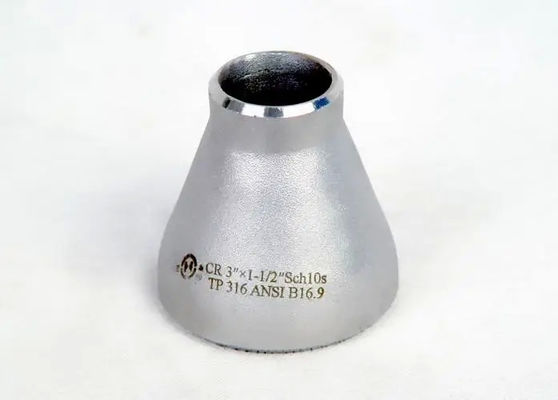

ASTM A815 UNS S31803 S32205 Duplex Stainless Steel Reducer Butt Weld Pipe Fitting with High Strength and Excellent SCC Resistance

  • ASTM A815 UNS S31803 S32205 Duplex Stainless Steel Reducer Butt Weld Pipe Fitting with High Strength and Excellent SCC Resistance
  • ASTM A815 UNS S31803 S32205 Duplex Stainless Steel Reducer Butt Weld Pipe Fitting with High Strength and Excellent SCC Resistance
  • ASTM A815 UNS S31803 S32205 Duplex Stainless Steel Reducer Butt Weld Pipe Fitting with High Strength and Excellent SCC Resistance
  • ASTM A815 UNS S31803 S32205 Duplex Stainless Steel Reducer Butt Weld Pipe Fitting with High Strength and Excellent SCC Resistance
  • ASTM A815 UNS S31803 S32205 Duplex Stainless Steel Reducer Butt Weld Pipe Fitting with High Strength and Excellent SCC Resistance
Plaats van herkomst Sjanghai, China
Merknaam TOBO
Certificering ISO/TUV/SGS
Modelnummer Roestvrij staalreductiemiddel
Min. bestelaantal 1 st
Prijs Onderhandelbaar
Verpakking Details Standaard verzendpakket
Levertijd 15-30 werkdagen
Betalingscondities T/T, Western Union
Levering vermogen 10 ton/maand
Productdetails
Type Concentrisch Reductiemiddel, Zonderling Reductiemiddel Materiaal ASTM A815 UNS S31803, UNS S32205 (Duplex 2205)
Maatbereik 1/2 inch tot 48 inch (DN15-DN1200) Wanddikte SCH5S, SCH10S, SCH40S, SCH80S, SCH160, XXS
Standaard ASME B16.9, MSS SP75, EN10253, NORSOK M-650 Sleuteleigenschap Hoge sterkte, uitstekende SCC-weerstand
Markeren

Duplex Steel Reducer

,

Butt Weld Reducer

,

S32205 Pipe Reducer
Laat een bericht achter
Productomschrijving
ASTM A815 UNS S31803 S32205 Duplex Stainless Steel Reducer Butt Weld Pipe Fitting ASME B16.9
Product Overview

Our ASTM A815 UNS S31803/S32205 duplex stainless steel reducers combine the best properties of austenitic and ferritic stainless steels. With approximately twice the yield strength of standard 316L and outstanding resistance to stress corrosion cracking, these reducers are the premier choice for demanding offshore, marine, and chemical processing applications.

Product Specifications
Type Concentric Reducer, Eccentric Reducer
Material ASTM A815 UNS S31803, UNS S32205 (Duplex 2205)
Size Range 1/2 Inch to 48 Inch (DN15-DN1200)
Wall Thickness SCH5S, SCH10S, SCH40S, SCH80S, SCH160, XXS
Form Seamless and Welded
Standard ASME B16.9, MSS SP75, EN10253, NORSOK M-650
Key Property High Strength (2x 316L) with Excellent SCC Resistance
Application Offshore Platforms, Chemical Tankers, Desalination, Oil and Gas
Dimension Chart (ASME B16.9 Duplex Reducer)
DN NPS Large OD (mm) Small OD (mm) End to End H (mm)
25x20 1x3/4 33.7 26.9 51
40x25 1-1/2x1 48.3 33.7 64
50x40 2x1-1/2 60.3 48.3 76
80x50 3x2 88.9 60.3 89
100x80 4x3 114.3 88.9 102
150x100 6x4 168.3 114.3 140
200x150 8x6 219.1 168.3 152
250x200 10x8 273.0 219.1 178
300x250 12x10 323.9 273.1 203
350x300 14x12 355.6 323.9 330
400x350 16x14 406.4 355.6 356
500x400 20x16 508.0 406.4 508
Duplex 2205 vs 316L Mechanical Properties Comparison
Property Duplex 2205 (S32205) 316L Austenitic Advantage
Yield Strength (MPa) min 450 min 170 2.6x Stronger
Tensile Strength (MPa) min 655 min 485 35% Higher
Elongation (%) min 25 min 40 316L more ductile
Hardness (HRC) max 28 max 22 Duplex harder
PREN (Pitting Resistance) 34-38 24-26 Superior Pitting Resistance
SCC Resistance Excellent Moderate Superior SCC Resistance
Thermal Conductivity (W/m.K) 19 15 Better Heat Transfer
Chemical Composition of Duplex 2205
Element C Cr Ni Mo N Mn Si Fe
Content (%) max 0.03 22.0-23.0 4.5-6.5 3.0-3.5 0.14-0.20 max 2.00 max 1.00 Balance
Key Advantages
  • Twice the yield strength of 316L - enables thinner wall design and weight savings
  • Excellent resistance to stress corrosion cracking in chloride environments
  • Superior pitting and crevice corrosion resistance (PREN greater than 34)
  • ISO/TUV/SGS certified with full NORSOK M-650 compliance available
  • Third-party inspection accepted (SGS, BV, TUV, DNV, ABS, LR)
  • Cost-effective alternative to super duplex for many applications
  • Non-destructive testing available: UT, RT, PT, PMI upon request
