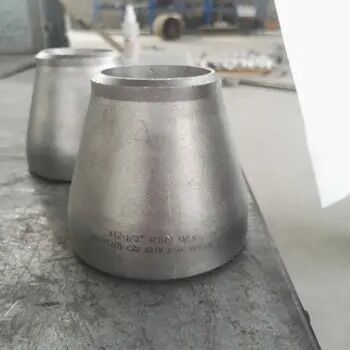

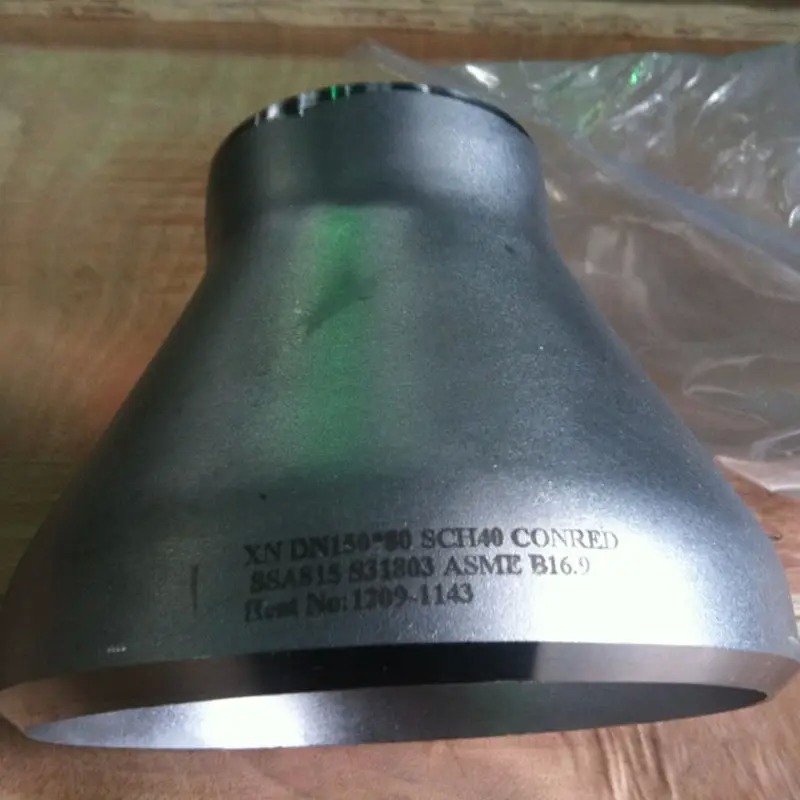

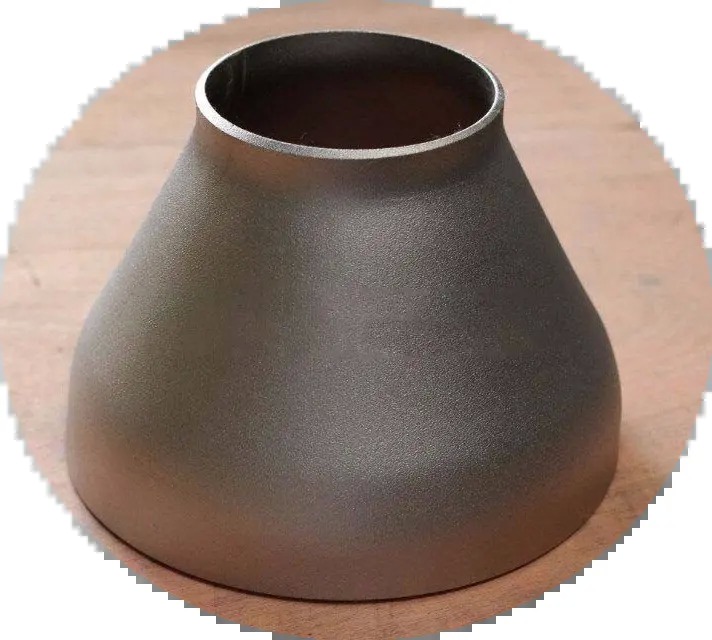

ANSI B16.9 Stainless Steel Butt Weld Eccentric Reducer Class 150 Pipe Fittings

  • ANSI B16.9 Stainless Steel Butt Weld Eccentric Reducer Class 150 Pipe Fittings
  • ANSI B16.9 Stainless Steel Butt Weld Eccentric Reducer Class 150 Pipe Fittings
  • ANSI B16.9 Stainless Steel Butt Weld Eccentric Reducer Class 150 Pipe Fittings
  • ANSI B16.9 Stainless Steel Butt Weld Eccentric Reducer Class 150 Pipe Fittings
  • ANSI B16.9 Stainless Steel Butt Weld Eccentric Reducer Class 150 Pipe Fittings
Plaats van herkomst Sjanghai, China
Merknaam TOBO
Certificering ISO/TUV/SGS
Modelnummer Roestvrij staalreductiemiddel
Min. bestelaantal 1 st
Prijs Onderhandelbaar
Verpakking Details Standaard verzendpakket
Levertijd 15-30 werkdagen
Betalingscondities T/T, Western Union
Levering vermogen 10 ton/maand
Productdetails
Productnaam ANSI B16.9 roestvrijstalen stuiklas excentrisch verloopstuk klasse 150 buisfittingen Oppervlakteafwerking Satijn/Spiegel
Oppervlaktekleur Zilver Maximale druk 3000 psi
Soorten Naadloos Wanddikte Sch5s-Sch160
Standaard ASME B16.9, ANSI, DIN Oppervlak Morror / satine
Oppervlaktebehandeling Gepolijst Verbindingstype gelast
Temperatuurbereik -20°C tot 400°C Breedte 2-3/8 binnen
Fabrikant SmithCo Vorm concentrisch of excentrisch
land van herkomst Verenigde Staten Finish Gepolijst, satijn of mat
Markeren

ANSI B16.9 Stainless Steel Reducer

,

Eccentric Butt Weld Reducer

,

Class 150 Pipe Fittings
Laat een bericht achter
Productomschrijving

ANSI B16.9 Stainless Steel Butt Weld Eccentric Reducer Class 150 Pipe Fittings


1. Product Description

Stainless Steel Reducer is a precision pipe fitting engineered to connect pipes of different diameters with smooth inner-wall transition. Manufactured by cold or hot forming, it is available in Concentric (center‑aligned) and Eccentric (flat‑side offset) designs, ensuring turbulence‑free flow, minimal pressure drop, and long‑term service reliability in demanding environments.


2. Product Applications

  • Oil & gas gathering and transmission lines

  • Chemical, petrochemical and refining plants

  • Municipal water supply and wastewater treatment

  • Power generation (thermal, nuclear, renewable)

  • Pharmaceutical, biotech and clean‑room facilities

  • Food, dairy and beverage processing

  • Offshore platforms, shipbuilding and marine piping

  • Pulp, paper and textile mills

  • HVAC and industrial refrigeration systems


​3.Product Advantages

  • Premium austenitic and duplex stainless steels – excellent resistance to pitting, crevice corrosion and stress corrosion cracking.

  • High mechanical strength and fatigue resistance, suitable for cyclic pressure and temperature loads.

  • Precision machining ensures tight dimensional control and leak‑free butt‑weld or socket‑weld connections.

  • One‑piece forming (no longitudinal seam) reduces weak points; welded versions also available for large diameters.

  • Minimal maintenance – inherently rust‑proof, weather‑proof and chemical‑resistant.

  • Optimised internal profile yields pressure loss <5% over a wide service range (-20°C to 450°C with certain grades).

  • Full customisation – material grades, wall schedules, surface finishes and end preparations available on request.

​

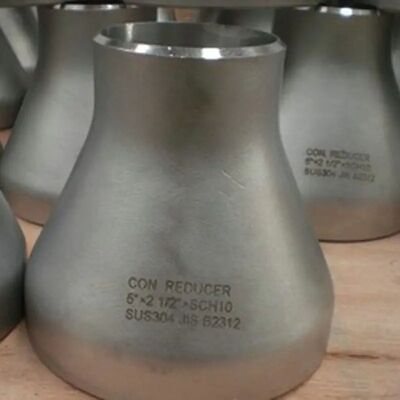

​ANSI B16.9 Stainless Steel Butt Weld Eccentric Reducer Class 150 Pipe Fittings 0​

4.Key Product Parameters





Parameter Specification / Value
Material Grades 304, 304L, 316, 316L, 317L, 321, 310S, 347, 904L, Duplex 2205, Super Duplex 2507
Manufacturing Process Seamless (cold‑drawn / hot‑finished) or Welded (plate‑formed)
Size Range – Seamless 1/2" – 20" (DN15 – DN500)
Size Range – Welded 1/2" – 48" (DN15 – DN1200)
Wall Thickness Schedules SCH 5S, 10S, 20S, 40S, 80S, STD, XS, XXS (1.0 – 30 mm)
Reducer Type Concentric; Eccentric
End Connection Butt‑weld (BW); Socket‑weld (SW)
End Bevel Preparation Beveled ends per ASME B16.25 / DIN 2616 (for BW); square cut for SW
Dimensional Tolerances OD: ±1.5 mm; ID: ±0.5 mm; Wall thickness: ±12.5% (varies by standard)
Ovality (out‑of‑roundness) ≤1% of nominal OD (seamless); ≤1.5% (welded)
Surface Roughness As‑rolled: Ra ≤ 6.3 µm; Polished: Ra ≤ 3.2 µm; Electropolished: Ra ≤ 0.8 µm
Hardness (max) ≤187 HB (for 304/316); ≤217 HB (for duplex grades)
Density 7.9 g/cm³ (austenitic); 7.8 g/cm³ (duplex)
Tensile Strength (min) ≥515 MPa (316L); ≥620 MPa (duplex)
Yield Strength (min) ≥205 MPa (316L); ≥450 MPa (duplex)
Non‑destructive Testing (NDT) Radiography (RT), Ultrasonic (UT), Dye‑penetrant (PT), Magnetic particle (MPI) – available upon request
Hydrostatic / Pneumatic Test Optional, test pressure per ASME B16.9 or customer specification
Marking Laser / stamp: material grade, size, schedule, standard, heat number, manufacturer's logo
Packaging Plywood cases, wooden pallets, with plastic end caps and moisture‑proof wrapping
Delivery Condition Annealed and pickled; or solution‑treated + polished; or as‑per‑customer finish
Applicable Standards ASME B16.9, B16.28, MSS SP‑43, DIN 2616, JIS B2313, GB/T12459, GB/T13401, HG/T21635
Service Temperature Range -20°C to 400°C (standard); up to 800°C for high‑temperature grades
Pressure Loss (typical) <5% of inlet pressure under normal flow conditions



FAQ
1. Are you trading company or manufacturer ? We are manufacturer ,You can see the certification.

2.How long is your delivery time? Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

3. Do you provide samples ? is it free or extra ? Yes, we could offer the sample for free charge but need pay the cost of freight.

4. What is your terms of payment ? Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
