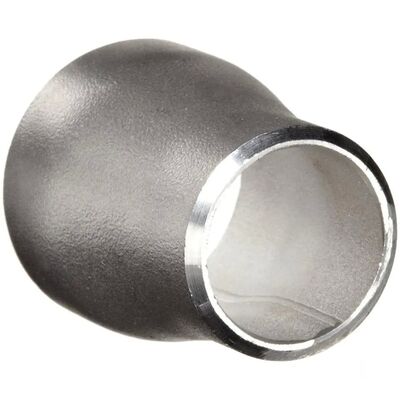

Schedule 40 ASME B16.9 Class 150 Stainless Steel Butt Welding Reducer with Flange End

  • Schedule 40 ASME B16.9 Class 150 Stainless Steel Butt Welding Reducer with Flange End
  • Schedule 40 ASME B16.9 Class 150 Stainless Steel Butt Welding Reducer with Flange End
  • Schedule 40 ASME B16.9 Class 150 Stainless Steel Butt Welding Reducer with Flange End
  • Schedule 40 ASME B16.9 Class 150 Stainless Steel Butt Welding Reducer with Flange End
  • Schedule 40 ASME B16.9 Class 150 Stainless Steel Butt Welding Reducer with Flange End
Plaats van herkomst Sjanghai, China
Merknaam TOBO
Certificering ISO/TUV/SGS
Modelnummer Roestvrij staalreductiemiddel
Min. bestelaantal 1 st
Prijs Onderhandelbaar
Verpakking Details Standaard verzendpakket
Levertijd 15-30 werkdagen
Betalingscondities T/T, Western Union
Levering vermogen 10 ton/maand
Productdetails
Productnaam Schema 40 roestvrijstalen stomplasreductiemiddel ASME B16.9 klasse 150 flensuiteinde Eindtype Concentrisch
hoofdcode Cirkel Betalingstermijn T/T/L/C/Western Union/Paypal
Druk Sch5s-Sch160 Standaard ASTM A403, ASME B16.9
Gebruikindustrie Olie en gas, chemie, voedselverwerking, farmacie Verbindingstype Buttweld
Transportpakket Houten Gevallen of Pallets Naam Reducer Roestvrij staalreductiemiddel
Beëindig de verbinding Met schroefdraad Test Röntgenstraaltest, Hydrotest, UT-Test
Materiaalreducer Roestvrij staal /304/316L/1.1307/1.4404 Soorten Verminderaar van de concentratie; Verminderaar van de concentratie
Certificeringen ASTM A403, ASME B16.9 Finish Gepolijst, mat of geborsteld
Markeren

ASME B16.9 Class 150 Stainless Steel Reducer

,

Schedule 40 Butt Welding Reducer

,

Flange End Pipe Fitting Reducer
Laat een bericht achter
Productomschrijving

Schedule 40 Stainless Steel Butt Welding Reducer ASME B16.9 Class 150 Flange End


1. Product Description

Stainless Steel Reducer is a pipe fitting designed to connect pipes of different diameters, ensuring smooth diameter transition and reduced fluid turbulence. Available in two types: Concentric (centerlines aligned) and Eccentric (offset design with a flat side)


2. Product Applications

  • Petroleum & Natural Gas

  • Chemical & Petrochemical

  • Water Supply & Treatment

  • Power Generation

  • Pharmaceutical & Food Processing

  • Marine & Shipbuilding

  • HVAC & Refrigeration

  • Construction & Papermaking

​3.Product Advantages

  1. Superior corrosion & rust resistance for harsh environments.

  2. High mechanical strength with excellent pressure and wear resistance.

  3. Precision machined for secure, leak-proof connections.

  4. Integrated stamping forming reduces fracture risks.

  5. Low maintenance, waterproof, and long service life.

  6. Pressure loss < 5%; operating temperature from -20°C to 400°C.

  7. Customizable sizes, materials, and surface finishes available.

​Schedule 40 ASME B16.9 Class 150 Stainless Steel Butt Welding Reducer with Flange End 0

4.Key Product Parameters



Parameter Specification
Material Grades 304, 304L, 316, 316L, 317, 317L, 321, 310, 347, 904L, Duplex, Super Duplex
Size Range Seamless: 1/2" – 20" (DN15 – DN500)
Welded: 1/2" – 48" (DN15 – DN1200)
Wall Thickness SCH 5S, 10S, 20S, 40S, 80S, STD, XS (1mm – 30mm)
Types Concentric, Eccentric
Connections Butt Weld, Socket Weld
Standards ASME B16.9, ASME B16.28, MSS SP-43, DIN 2616, JIS B2313, GB/T12459
Tensile Strength ≥515 MPa (316 SS)
Surface Finish Polished, Sandblasting, Electro-polished
Temp. Range -20°C to 400°C
Pressure Loss <5%




FAQ
1. Are you trading company or manufacturer ? We are manufacturer ,You can see the certification.

2.How long is your delivery time? Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

3. Do you provide samples ? is it free or extra ? Yes, we could offer the sample for free charge but need pay the cost of freight.

4. What is your terms of payment ? Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
