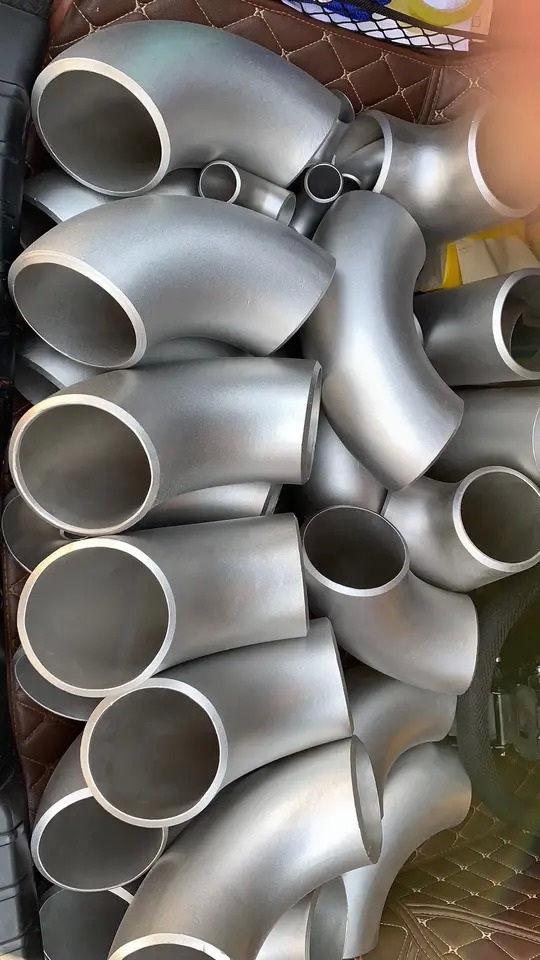

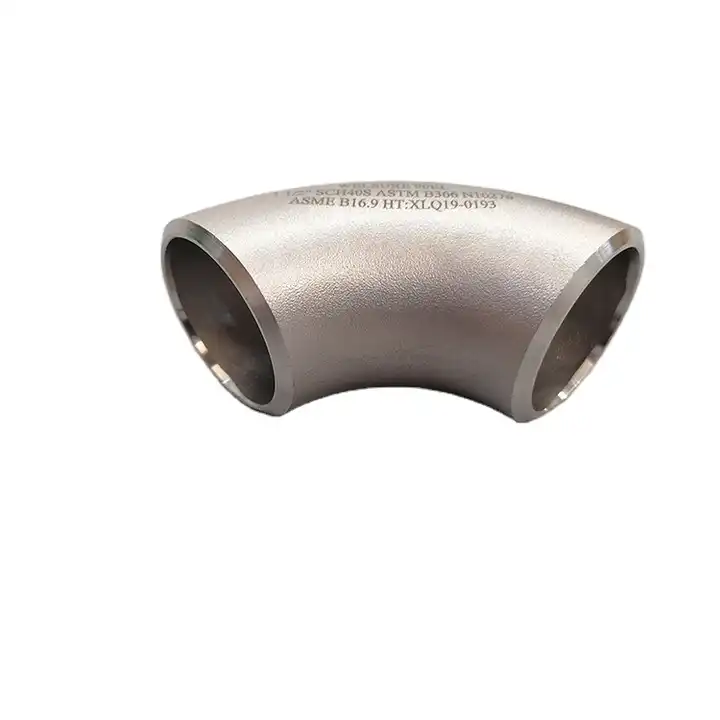

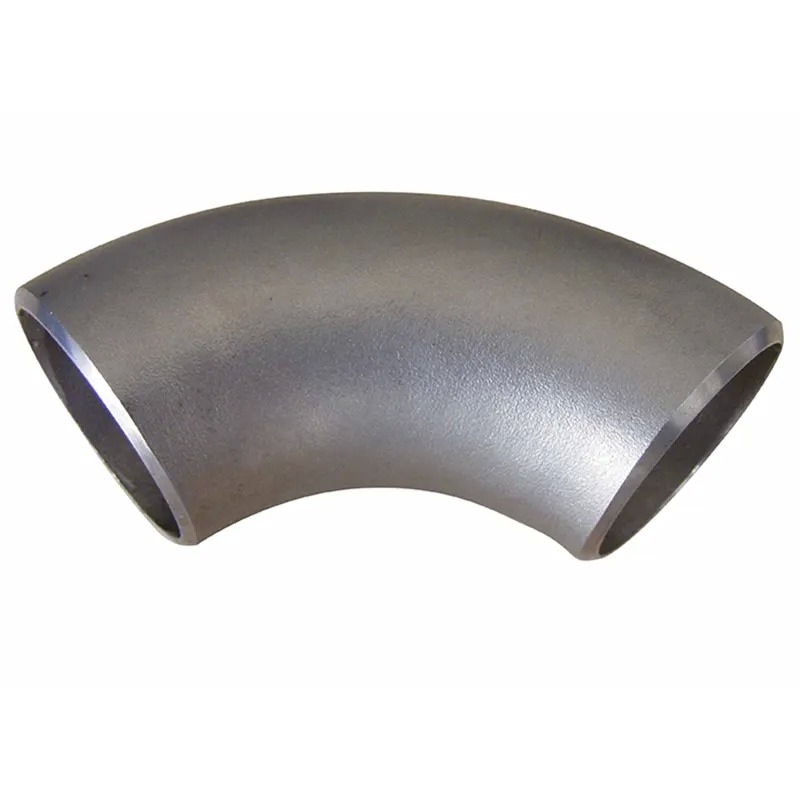

316L Stainless Steel Butt Weld 90 LR Elbow Sch80 ASME B16.9 Class600

  • 316L Stainless Steel Butt Weld 90 LR Elbow Sch80 ASME B16.9 Class600
  • 316L Stainless Steel Butt Weld 90 LR Elbow Sch80 ASME B16.9 Class600
  • 316L Stainless Steel Butt Weld 90 LR Elbow Sch80 ASME B16.9 Class600
  • 316L Stainless Steel Butt Weld 90 LR Elbow Sch80 ASME B16.9 Class600
  • 316L Stainless Steel Butt Weld 90 LR Elbow Sch80 ASME B16.9 Class600
Plaats van herkomst Sjanghai, China
Merknaam TOBO
Certificering ISO/TUV/SGS
Modelnummer Roestvrij staalelleboog
Min. bestelaantal 1 st
Prijs Onderhandelbaar
Verpakking Details Standaard verzendpakket
Levertijd 15-30 werkdagen
Betalingscondities T/T, Western Union
Levering vermogen 10 ton/maand
Productdetails
Productnaam 316L RVS Stomplas 90 LR Elleboog Sch80 ASME B16.9 Class600 Gebruikelijke verpakking Houten Geval IR pallet
Garantie 3 jaar dunheid 5S-XXS
Oppervlaktebehandeling Als eis van de klant Hoek 90 graden
Staalkwaliteit WPS31725 Lichaamsmateriaal SS304L/SS316L
Temperatuurbereik -20°C tot 400°C Normen ASTM A403, ASME B16.9
Oppervlakteafwerking Gepolijst / gebeitst / gepassiveerd Verpakking Plastic zak+doos
Wanddikte SCH 5S/Sch 10S/Sch 40S/SCH 80S/SCH 160S Kleur Zilver
Sollicitatie Leidingsystemen voor vloeistof- en gastransport Corrosiebestendigheid Hoog
Laat een bericht achter
Productomschrijving

316L Stainless Steel Butt Weld 90 LR Elbow Sch80 ASME B16.9 Class600



1. Product Description

The stainless steel butt welding elbow is a durable pipe fitting engineered for directional changes in high-pressure and high-temperature piping systems. Manufactured through hot-pressing or cold-forming processes, it features precision-prepared weld bevels that ensure full joint penetration and structural integrity. Available in a variety of stainless steel grades, this elbow provides outstanding performance in corrosive, cryogenic, and elevated-temperature environments. Strict quality assurance protocols govern every stage of production, from raw material verification to final dimensional inspection.

2. Product Applications

These elbows are key components for routing pipelines in diverse industrial environments:

  • Refineries – crude transfer, vacuum tower piping, product fractionation.

  • Chemical plants – aggressive chemical processing, acid and alkali piping.

  • LNG terminals – cryogenic fluid handling and vaporization systems.

  • Power utilities – high-pressure steam lines and cooling circuits.

  • Offshore platforms – topside and subsea piping networks.

  • Water supply networks – large-diameter municipal pipelines.

  • Pulp mills – chemical recovery and bleaching sequences.

  • Semiconductor industry – high-purity chemical distribution.

​3. Product Advantages

  • Grade versatility – matching the right material to every service condition, from mild to severely corrosive.

  • Thickness integrity – advanced forming minimizes thinning at the bend, ensuring uniform strength.

  • Precision bevels – factory-machined bevels reduce field preparation time and welding consumables.

  • Reliable traceability – each piece marked with heat number and fully documented with test reports.

  • Shorter delivery cycles – streamlined production enables quick turnaround for both standard and custom orders.

  • Global compliance – products meet multiple international codes, simplifying import and project acceptance.

  • Minimal maintenance – stainless steel surface resists scaling and pitting, cutting long-term upkeep costs.

316L Stainless Steel Butt Weld 90 LR Elbow Sch80 ASME B16.9 Class600 0

4.Key Product Parameters

Parameter Specification
Material Options 304, 304L, 316, 316L, 321, 347H, 310S, 904L, 2205, 2507
Production Standards ASME B16.9, GB/T 13401, SH/T 3408, HG/T 21631, EN 10253-4, GOST 17375, JIS B2312
Diameter Range DN 20 – DN 1600 (NPS ¾" – 64")
Wall Thickness SCH 10S, 40S, 80S, STD, XS, XXS, up to SCH 180 on request
Radius Options 1.5D (standard), 1.0D, 3D, 4D, 5D, 6D, 8D, 10D
Available Angles 22.5°, 45°, 60°, 90°, 180° and any custom angle
End Finish Bevelled ends to ASME B16.25, plain ends optional
Exterior Finish Sandblasted, pickled, passivated, or coated upon request
Inspection Scope Dimensional check, hardness test, PMI, ferrite measurement (duplex), hydrostatic test
Temperature Range –196°C up to +750°C depending on grade
Applicable Mediums Steam, oil, gas, acid, alkali, seawater, cryogenic fluids

FAQ

1. Are you trading company or manufacturer ? We are manufacturer ,You can see the certification.

2.How long is your delivery time? Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

3. Do you provide samples ? is it free or extra ? Yes, we could offer the sample for free charge but need pay the cost of freight.

4. What is your terms of payment ? Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
