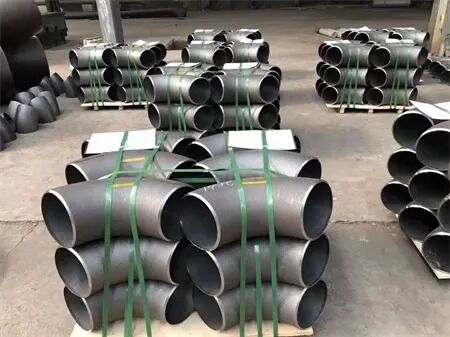

304L Stainless Steel Butt Weld SR 90 Elbow ASME B16.9 Seamless Fitting

  • 304L Stainless Steel Butt Weld SR 90 Elbow ASME B16.9 Seamless Fitting
  • 304L Stainless Steel Butt Weld SR 90 Elbow ASME B16.9 Seamless Fitting
  • 304L Stainless Steel Butt Weld SR 90 Elbow ASME B16.9 Seamless Fitting
  • 304L Stainless Steel Butt Weld SR 90 Elbow ASME B16.9 Seamless Fitting
  • 304L Stainless Steel Butt Weld SR 90 Elbow ASME B16.9 Seamless Fitting
Plaats van herkomst Sjanghai, China
Merknaam TOBO
Certificering ISO/TUV/SGS
Modelnummer Roestvrij staalelleboog
Min. bestelaantal 1 st
Prijs Onderhandelbaar
Verpakking Details Standaard verzendpakket
Levertijd 15-30 werkdagen
Betalingscondities T/T, Western Union
Levering vermogen 10 ton/maand
Productdetails
Productnaam 304L roestvrijstalen stomplas SR 90 elleboog ASME B16.9 naadloze fitting Exportmarkten Globaal
Materiaalkwaliteit ASTM A403 WP316Ti Finish Gieten
Schema's Sch.40 aan Sch.XXs Steekproef Beschikbaar
Technisch Gesmeed Rang 180 graden
Druk 150-3000 psi Partij dertig TUV, SGS, BV
Diameter Varieert (bijv. 1/2 inch, 1 inch, 2 inch) Techniek Buttweld
Gebruik industriële, aansluitende pijplijnen Oppervlaktebehandeling Gepolijst/zandstralen/beitsen
Vorm 90 graden Trefwoorden Pijpbevestigingen voor verbinding SCH40 Elbow
Laat een bericht achter
Productomschrijving

304L Stainless Steel Butt Weld SR 90 Elbow ASME B16.9 Seamless Fitting



1. Product Description

This stainless steel butt welding elbow is a high‑reliability pipe fitting manufactured by hot forging or extrusion. Designed for permanent butt‑welded connections, it provides a smooth, continuous bore that ensures efficient fluid flow with minimal turbulence. The fitting is produced from corrosion‑resistant austenitic stainless steels, primarily 304/L and 316/L, which offer excellent resistance to oxidation, chemical attack, and thermal cycling. Precision machining guarantees accurate bevel geometry and dimensional consistency, making it easy to align and weld on site.

2. Product Applications

The elbow is suitable for fluid handling systems across numerous sectors:

  • Oil and gas – gathering, processing, and transmission pipelines.

  • Chemical and petrochemical – reactor and heat exchanger circuits.

  • Power generation – steam, condensate, and cooling water systems.

  • Pharmaceutical and biotechnology – clean utilities and process lines.

  • Food and beverage – product transfer and CIP loops.

  • Water treatment – desalination, filtration, and distribution.

  • Marine – fuel, ballast, and seawater cooling.

​3. Product Advantages

  • Robust construction – hot forming ensures fine grain structure and consistent mechanical properties.

  • Leak‑free guarantee – full‑penetration weld eliminates potential leakage paths.

  • Wide material selection – grades available for ordinary, acidic, high‑temperature, and low‑temperature services.

  • Easy field welding – accurate bevel and uniform wall thickness reduce welding difficulty and inspection rework.

  • Cost‑effective inventory – popular sizes kept in stock, reducing project lead times.

  • Long service life – stainless steel’s passive film offers self‑healing protection in most environments.

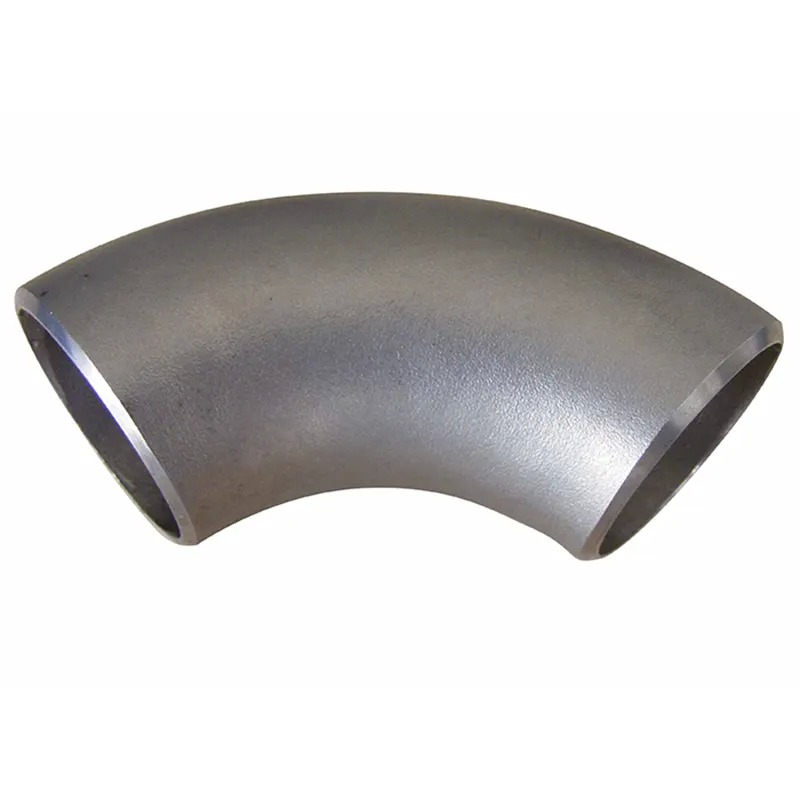

304L Stainless Steel Butt Weld SR 90 Elbow ASME B16.9 Seamless Fitting 0

4.Key Product Parameters

Parameter Range / Details
Materials 304, 304L, 316, 316L, 321, 347, duplex 2205
Design Codes ASME B16.9, GB/T 12459, EN 102532, DIN 2605, JIS B2313
Size Range DN 15 – DN 1200 (NPS ½" – 48")
Wall Thickness SCH 5S through SCH 160, including STD, XS, XXS
Bending Radius LR (1.5D) and SR (1.0D) as standard; 3D/5D available
Standard Angles 45°, 90°, 180°; other angles on request
Bevel Type Single bevel, 30° included angle, with root face
Surface Finish Pickled and passivated, or mechanically polished
Dimensional Tolerance ASME B16.9 Class 1 (standard) or Class 2 (precision)
Inspection 100% visual + PMI; NDT (PT/UT/RT) optional
Pressure Class Class 150 – Class 2500 (PN 20 – PN 420)

FAQ

1. Are you trading company or manufacturer ? We are manufacturer ,You can see the certification.

2.How long is your delivery time? Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

3. Do you provide samples ? is it free or extra ? Yes, we could offer the sample for free charge but need pay the cost of freight.

4. What is your terms of payment ? Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
