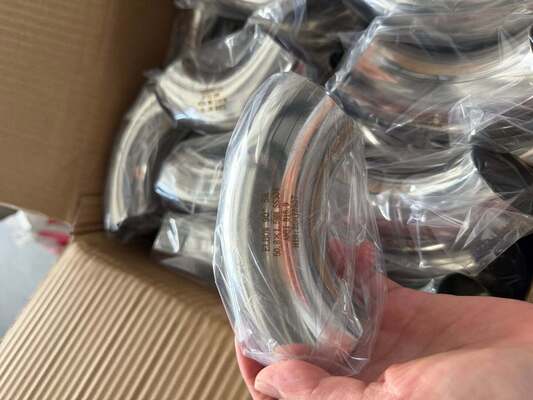

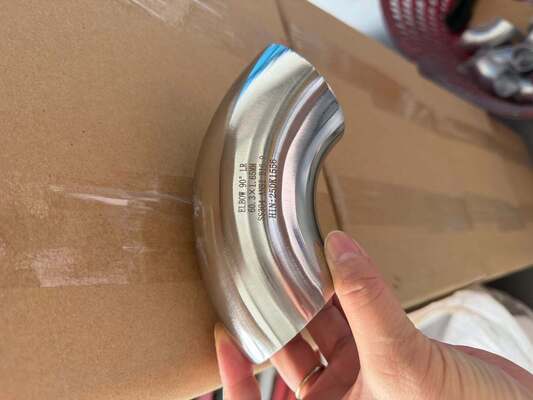

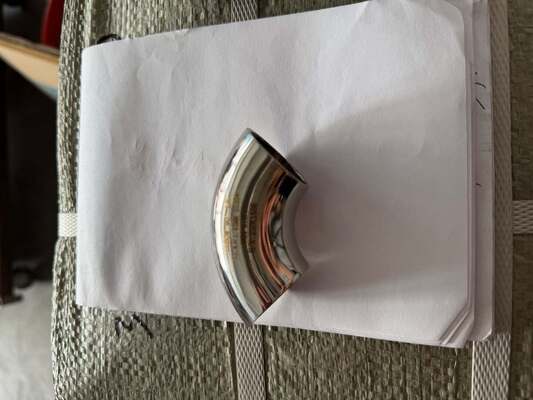

SS304 Seamless Butt Welding Elbow ASME B16.9 Corrosion Resistant High Temperature

  • SS304 Seamless Butt Welding Elbow ASME B16.9 Corrosion Resistant High Temperature
  • SS304 Seamless Butt Welding Elbow ASME B16.9 Corrosion Resistant High Temperature
  • SS304 Seamless Butt Welding Elbow ASME B16.9 Corrosion Resistant High Temperature
  • SS304 Seamless Butt Welding Elbow ASME B16.9 Corrosion Resistant High Temperature
  • SS304 Seamless Butt Welding Elbow ASME B16.9 Corrosion Resistant High Temperature
Plaats van herkomst Sjanghai, China
Merknaam TOBO
Certificering ISO/TUV/SGS
Modelnummer Roestvrij staalelleboog
Min. bestelaantal 1 st
Prijs Onderhandelbaar
Verpakking Details Standaard verzendpakket
Levertijd 15-30 werkdagen
Betalingscondities T/T, Western Union
Levering vermogen 10 ton/maand
Productdetails
Productnaam SS304 Naadloze stomplaselleboog ASME B16.9 Corrosiebestendig Op hoge temperatuur Stijl Buttweld
Artikelvorm 90 graden elleboog Corrosiebestendigheid Hoog
Materiaal Roestvrij staal Corrosiebestendigheid Hoog
Verbindingstype Stomplassen / schroefdraad / socketlas Eindigt Buttweld, Socketweld, met draad
Maat 1/2 inch tot 12 inch Materiële standaard Het is de bedoeling dat de Commissie de Commissie en de Raad van ministers van Buitenlandse Zaken va
Test Röntgenstraaltest, Hydrotest, UT-Test OEM Geaccepteerd
Drukvast Klasse 150 tot Klasse 3000 Temperatuur Hoge temperatuur
Buitendiameter 6 - 710mm Formulier 1/8
Laat een bericht achter
Productomschrijving

SS304 Seamless Butt Welding Elbow ASME B16.9 Corrosion Resistant High Temperature



1. Product Description

The stainless steel butt welding elbow is a pipe fitting manufactured by hot pressing or forging. It is designed to be directly butt‑welded to pipes, creating a permanent, flush joint that ensures maximum flow and minimal pressure loss. The fitting is made from high‑grade stainless steel grades such as 304, 304L, 316, and 316L, offering excellent corrosion resistance, oxidation resistance, and high‑temperature strength. It conforms to international and national standards, ensuring full compatibility with pipelines of the same nominal size.

2. Product Applications

This elbow is used to change the direction of piping in various industrial systems. Main applications include:

  • Petrochemical and chemical processing plants – for crude oil, refined products, and chemical feedstocks.

  • Water treatment and environmental protection – drinking water supply, sewage, and seawater desalination.

  • Food, beverage, and pharmaceutical industries – sanitary pipelines for clean media.

  • Power generation – boiler feedwater and steam lines.

  • Oil and gas – production fluids and natural gas transmission.

  • Marine and offshore engineering – seawater cooling and fuel oil systems.

  • Building and municipal engineering – water supply, drainage, heating, and gas distribution.

​

​3. Product Advantages

  • Superior corrosion resistance – 304/316L grades resist pitting, crevice corrosion, and stress corrosion cracking, suitable for harsh environments.

  • High strength and durability – work hardening during forming provides excellent mechanical strength; service life can reach up to 100 years with low maintenance.

  • Leak‑proof permanent connection – butt welding ensures a seamless, reliable joint that eliminates leakage risks.

  • Smooth internal surface – reduces fluid friction, prevents deposit accumulation, and inhibits bacterial growth.

  • Material and energy saving – stamping process produces minimal scrap and requires no extra heating, making it efficient and eco‑friendly.

  • Quick installation – installation time is only one‑third of that for threaded or socket‑welded fittings, shortening construction schedules.

SS304 Seamless Butt Welding Elbow ASME B16.9 Corrosion Resistant High Temperature 0

4.Key Product Parameters

Parameter Specification
Materials Stainless steel 304, 304L, 316, 316L, and other custom grades
Standards GB/T12459, GB/T13401, ASME B16.9, SH3408, SH3409, HG/T21635, HG/T21631, SY/T0510, GB/T10752-1995, EN10253-2, DIN2605, GOST17375-2001, JIS B2313
Size Range (Seamless) 1/2" – 24" (DN15 – DN600)
Size Range (Welded) 4" – 72" (DN150 – DN1900)
Wall Thickness Schedules SCH5S, SCH10S, SCH10, SCH20, SCH30, SCH40S, STD, SCH40, SCH60, SCH80S, XS, SCH80, SCH100, SCH120, SCH140, SCH160, XXS
Bending Radii Long Radius (LR): R=1.5D; Short Radius (SR): R=1D
Angles 30°, 45°, 60°, 90°, 180°, and custom angles
End Finish Beveled ends for butt welding
Surface Treatment Natural, varnished, pickled, or passivated
Pressure Ratings Approximately 17 classes; STD and XS most common. Max working pressure: 275 psi at 150°F



FAQ

1. Are you trading company or manufacturer ? We are manufacturer ,You can see the certification.

2.How long is your delivery time? Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

3. Do you provide samples ? is it free or extra ? Yes, we could offer the sample for free charge but need pay the cost of freight.

4. What is your terms of payment ? Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
