Plaats van herkomst: | China |
---|---|
Merknaam: | Tobo |
Certificering: | SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED |
Modelnummer: | Reducer |
Min. bestelaantal: | 1PC |
Prijs: | USD Depending on quantity |
Verpakking Details: | VOUW-HOUTEN COMPUTER-AIDED SOFTWARE ENGINEERING OF PALLET |
Levertijd: | 10-100 dagen afhankelijk van hoeveelheid |
Betalingscondities: | L / C, T / T, Western Union |
Levering vermogen: | 3,0000pcs per maand |
Maat: | 1-96 duim | Materiële Grrade: | 904L |
---|---|---|---|
standaard: | ASME B16.9 | Conc.reducer; Ecc reductiemiddel: | Naadloos of las |
Hoog licht: | De Montage van het pijpreductiemiddel,Concentrisch Pijpreductiemiddel |

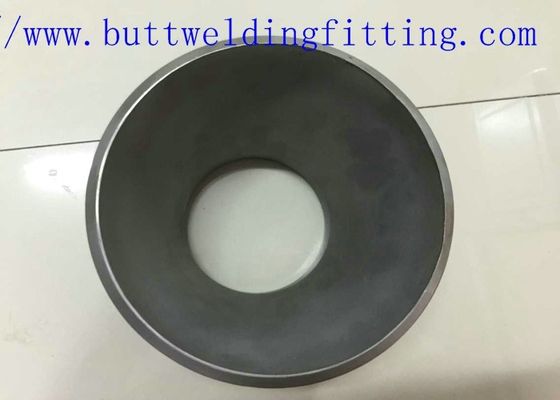

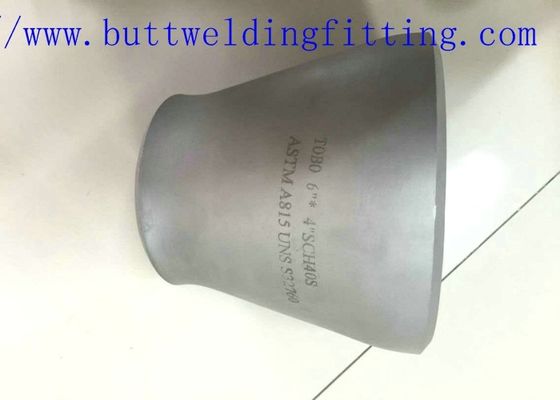

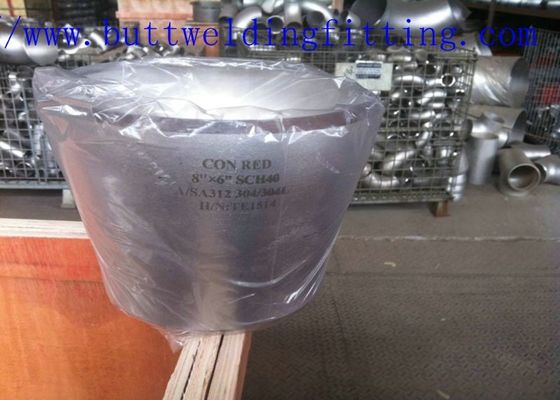

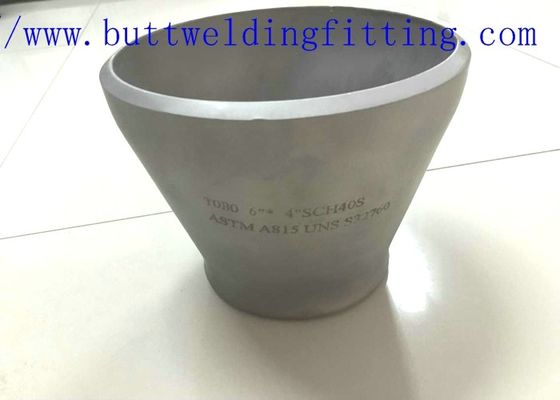

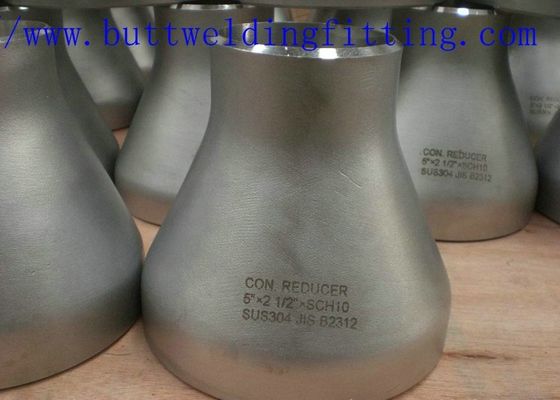

Concentrische roestvrijstalen verloopstukken PN40 64 100 160 250 320 1-96 Inch
Omschrijving:
1. Artikel Art nr .: 007fittings-Cosco Steel
2. Grootte: 13,7 mm-1219,2 mm (1/4 '' - 48 ''), DN8-DN1200
3. WT: SCH5S-XXS
4. Standaard: ANSI B16.9, ANSI B16.28, DIN 2605, ISO3419, DIN EN10253, JIS B2312, JIS B2313, MSS SP-25, MSS SP-75, BS1387
5. Grondstof
Koolstofstaal:
10 # 20 # Q235B ASTM A234 ASTM A105 ASTM A403
Roestvrij staal: 1Cr18Ni9Ti 0Cr18Ni9 00Cr19Ni10 0Cr17Ni12Mo2Ti 00Cr17Ni14Mo2 304 304L 316 316L
Gelegeerd staal:
16Mn Cr5Mo 12Cr1MoV 10CrMo910 15CrMo 12Cr2Mo1 A335P22 St45.8
ASTM A860 WPHY X42 X52 X60 X70
Aluminium staal:
1060,2024,2017,3003,5052,5083,6061,6083,6060,7075,8011

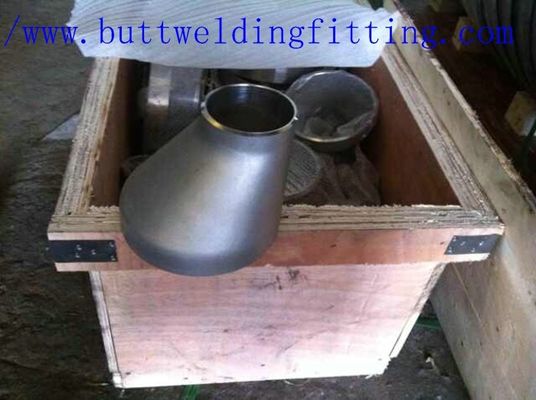

6. Verpakking: Houten kist, Houten pallet, of volgens klant eis
7. Markering: geregistreerd logo, warmtegetal, staalkwaliteit, standaard, maat
8. Verpakking: Houten doos of houten pallet.
9. HS-code: 73072300
10. Druk: PN40, 64, 100, 160, 250, 320, 1500, 2000, 2500, 3000, 6000,9000LBS
11. Inspectie
a) Factory in eigen beheer
b) Inspectie door derden op aanvraag beschikbaar
c) Verschillende accessoires zijn beschikbaar
12. Behandeling:
a) Licht geolied
b) Verzinkt
d) als per klant eis
13. Certificaat: ISO9001: 2000, CE
14. Betalingstermijn L / CT / T (vooraf)
15. Verpakking multiplex geval, houten kisten, pallet, of als per klant eis
1. roestvrij staal reducer
2.sch5s-schxxs
snelle details
Materiaal: | Roestvrij staal | Techniek: | Butt Weld, gesmeed | Type: | reducer |
Plaats van herkomst: | China (vasteland) | Modelnummer: | Con, Ecc verloopstuk | Merknaam: | TOBO |
Verbinding: | Lassen, lassen, draadaansluiting, moflas | Vorm: | Gelijk | Hoofd code: | Ronde |
normen: | ANSI / ASME / DIN / JIS / API / GB / ISO | Certificaten: | ISO9001 / 2008, ISO14001, OHSMS18000 | Grootte bereik: | DN15-DN2400 (1/2 "-96") |
Wanddikte: | SCH5-SCH160 XXS | Types: | Conc.reducer; Ecc verloopstuk | Oppervlakteafwerking: | zandstralen, zwart schilderen, galvaniseren afwerking |
materialen: | koolstofstaal, gelegeerd staal, roestvrij staal | Toepassing: | natuurlijk gas, chemicaliën, scheepsbouw en ga zo maar door. | Ruilterm: | FOB, C & F, CIF of andere klantverzoektermijn |
Verpakking & levering
Details over de verpakking: | Houten kist of houten pallet of volgens de eisen van de koper |
Levering Detail: | 25-30 dagen na bevestiging van bestelling |
bestek
Alle soorten buisleidingen met een hoge kwaliteit en de beste prijs
1) MOQ: 1 STUKS
2) Certificering: IS0 API ABS BV GL DNV CE CCS
Productdetails
Roestvrijstalen Conc-reductor
1 Product standaard en marteriaal
Standaard
1) Standaard: ASTM, ASME, DIN, JIS, API, GB, ISO
2) Certificeringen: ABS, CC, TUV, CC, GL, BV, ISO14001, ISO9001, OHSMS
Materiaal:
Koolstofstaal: ASTM A-234 (WPB, WPC) EN 10216-2 (P235GH, P265GH) EN10222-2 (P245GH, P280GH) NF A49-213 (TU42C, TU48C)
Laag gelegeerd staal: ASTM A-420 (WPL6) ASTM A-234 (WP11, WP22, WP5) ASTM A-860 (A860-
WPHY52)
Roestvrij staal: ASTMA403M (WP304, WP304L, WP304H, WP316, WP316L, WP321, WP321H, WP347, WP347H) EN10216-5 (X2CrNiN18-10 (1.4311), X5CrNi18-10 (1.4301), X5CrNiMo17-12 2 (1.4401), X2CrNiMo17 -12-2 (1.4404)
Reduer
Nominale diameter | Buitendiameter | Eind tot eind | ||
D1 * D2 | ||||
DN | NPS | Serie A | Serie B | H |
20 × 15 | 3/4 x 1/2 | 26.9 x 21.3 | 25 × 18 | 38 |
20 x 10 | 3/4 x 3/8 | 26.9 x 17.3 | 25 × 14 | 38 |
25 x 20 | 1 x 3/4 | 33.7 x 26.9 | 32 x 25 | 51 |
25 × 15 | 1 x 1/2 | 33.7 x 21.3 | 32 × 18 | 51 |
32 x 25 | 1.1 / 4 x 1 | 42.4 x 33.7 | 38 × 32 | 51 |
32 x 20 | 1.1 / 4 x 3/4 | 42,4 x 26,9 | 38 x 25 | 51 |
32 × 15 | 1.1 / 4 x 1/2 | 42.4 x 21.3 | 38 × 18 | 51 |
40 × 32 | 1.1 / 2 x 1,1 / 4 | 48,3 x 42,4 | 45 × 38 | 64 |
40 x 25 | 1.1 / 2 × 1 | 48.3 x 33.7 | 45 × 32 | 64 |
40 x 20 | 1.1 / 2 x 3/4 | 48,3 x 26,9 | 45 x 25 | 64 |
40 × 15 | 1.1 / 2 x 1/2 | 48.3 x 21.3 | 45 × 18 | 64 |
50 × 40 | 2 x 1,1 / 2 | 60.3 x 48.3 | 57 × 45 | 76 |
50 × 32 | 2 x 1,1 / 4 | 60.3 x 42.4 | 57 × 38 | 76 |
50 x 25 | 2 × 1 | 60.3 x 33.7 | 57 × 32 | 76 |
50 x 20 | 2 x 3/4 | 60.3 x 26.9 | 57 x 25 | 76 |
65 x 50 | 2,1 / 2 x 2 | 73,0 x 60,3 | 76 × 57 | 89 |
65 × 40 | 2,1 / 2 x 1,1 / 2 | 73,0 x 48,3 | 76 × 45 | 89 |
65 × 32 | 2,1 / 2 x 1,1 / 4 | 73,0 x 42,4 | 76 × 38 | 89 |
65 x 25 | 2,1 / 2 × 1 | 73,0 x 33,7 | 76 × 32 | 89 |
80 × 65 | 3 x 2,1 / 2 | 88,9 x 73,0 | 89 × 76 | 89 |
80 x 50 | 3 x 2 | 88.9 x 60.3 | 89 × 57 | 89 |
80 × 40 | 3 x 1.1 / 2 | 88.9 x 48.3 | 89 × 45 | 89 |
80 × 32 | 3 x 1,1 / 4 | 88.9 x 42.4 | 89 × 38 | 89 |
90 x 80 | 3.1 / 2 × 3 | 101.6 × 88.9 | - | 102 |
90 × 65 | 3.1 / 2 x 2,1 / 2 | 101,6 × 73,0 | - | 102 |
90 x 50 | 3.1 / 2 x 2 | 101.6 × 60.3 | - | 102 |
90 × 40 | 3.1 / 2 x 1,1 / 2 | 101.6 × 48.3 | - | 102 |
90 × 32 | 3.1 / 2 x 1,1 / 4 | 101.6 × 42.4 | - | 102 |
100 x 90 | 4 x 3,1 / 2 | 114,3 x 101,6 | - | 102 |
100 x 80 | 4 × 3 | 114.3 × 88.9 | 108 x 89 | 102 |
100 x 65 | 4 x 2,1 / 2 | 114,3 × 73,0 | 108 x 76 | 102 |
100 x 50 | 4 × 2 | 114.3 × 60.3 | 108 x 57 | 102 |
100 x 40 | 4 x 1,1 / 2 | 114.3 × 48.3 | 108 x 45 | 102 |
125 x 100 | 5 × 4 | 141,3 x 114,3 | 133 × 108 | 127 |
125 x 90 | 5 x 3,1 / 2 | 141,3 x 101,6 | - | 127 |
125 x 80 | 5 × 3 | 141.3 × 88.9 | 133 x 89 | 127 |
125 x 65 | 5 x 2,1 / 2 | 141,3 × 73,0 | 133 x 76 | 127 |
125 x 50 | 5 × 2 | 141,3 × 60,3 | 133 x 57 | 127 |
150 x 125 | 6 x 5 | 168,3 x 141,3 | 159 × 133 | 140 |
150 x 100 | 6 x 5 | 168,3 x 114,3 | 159 × 108 | 140 |
150 x 90 | 6 x 3,1 / 2 | 168,3 x 101,6 | - | 140 |
150 x 80 | 6 × 3 | 168,3 × 88,9 | 159 × 89 | 140 |
150 x 65 | 6 x 2,1 / 2 | 168,3 × 73,0 | 159 x 76 | 140 |
200 × 150 | 8 × 6 | 219,1 x 168,3 | 219 × 159 | 152 |
200 × 125 | 8 × 5 | 219,1 x 141,3 | 219 × 133 | 152 |
200 x 100 | 8 × 4 | 219,1 x 114,3 | 219 × 108 | 152 |
200 × 90 | 8 x 3,1 / 2 | 219,1 x 101,6 | - | 152 |
250 x 200 | 10 × 8 | 273,0 x 219,1 | 273 × 219 | 178 |
250 x 150 | 10 × 6 | 273,0 x 168,3 | 273 × 159 | 178 |
250 x 125 | 10 × 5 | 273,0 x 141,3 | 273 × 133 | 178 |
250 x 100 | 10 × 4 | 273,0 x 114,3 | 273 × 108 | 178 |
300 × 250 | 12 x 10 | 323,9 x 273,1 | 325 × 273 | 203 |
300 × 200 | 12 x 8 | 323,9 x 219,1 | 325 × 219 | 203 |
300 × 150 | 12 x 6 | 323,9 x 168,3 | 325 × 159 | 203 |
300 × 125 | 12 x 5 | 323,9 x 141,3 | 325 × 133 | 203 |
350 × 300 | 14 x 12 | 355,6 x 323,9 | 377 × 325 | 330 |
350 × 250 | 14 x 10 | 355,6 x 273,0 | 377 × 273 | 330 |
350 × 200 | 14 x 8 | 355,6 x 219,1 | 377 × 219 | 330 |
350 × 150 | 14 × 6 | 355,6 x 168,3 | 377 × 159 | 330 |
400 × 350 | 16 × 14 | 406,4 x 355,6 | 426 × 377 | 356 |
400 × 300 | 16 x 12 | 406,4 x 323,9 | 426 × 325 | 356 |
400 × 250 | 16 x 10 | 406,4 x 273,0 | 426 × 273 | 356 |
400 × 200 | 16 x 8 | 406,4 x 219,1 | 426 × 219 | 356 |
450 × 400 | 18 x 16 | 457 x 406.4 | 478 × 426 | 381 |
450 × 350 | 18 × 14 | 457 x 355,6 | 478 × 377 | 381 |
450 × 300 | 18 x 12 | 457 x 323,9 | 478 × 325 | 381 |
450 × 250 | 18 x 10 | 457 x 273,0 | 478 × 273 | 381 |
500 × 450 | 20 × 18 | 508 × 457 | 529 × 478 | 508 |
500 × 400 | 20 x 16 | 508 x 406.4 | 529 × 426 | 508 |
500 × 350 | 20 × 14 | 508 x 355,6 | 529 × 377 | 508 |
500 × 300 | 20 x 12 | 508 x 323,9 | 529 × 325 | 508 |
550 × 500 | 22 x 20 | 559 × 508 | - | 508 |
550 × 450 | 22 × 18 | 559 × 457 | - | 508 |
550 × 400 | 22 x 16 | 559 x 406.4 | - | 508 |
550 × 350 | 22 × 14 | 559 x 355,6 | - | 508 |
600 × 550 | 24 × 22 | 610 × 559 | - | 508 |
600 × 500 | 24 × 20 | 610 × 508 | 630 × 529 | 508 |
600 × 450 | 24 × 18 | 610 × 457 | 630 × 478 | 508 |
600 × 400 | 24 × 22 | 610 x 406.4 | 630 × 426 | 508 |
650 × 600 | 26 × 24 | 660 × 610 | - | 610 |
650 × 550 | 26 × 22 | 660 × 559 | - | 610 |
650 × 500 | 26 x 20 | 660 × 508 | - | 610 |
650 × 450 | 26 × 18 | 660 × 457 | - | 610 |
700 × 650 | 28 × 26 | 711 × 660 | - | 610 |
700 × 600 | 28 × 24 | 711 × 610 | 720 × 630 | 610 |
700 × 550 | 28 × 22 | 711 × 559 | - | 610 |
700 × 500 | 28 x 20 | 711 × 508 | 720 × 530 | 610 |
750 × 700 | 30 × 28 | 762 × 711 | - | 610 |
750 × 650 | 30 × 26 | 762 × 660 | - | 610 |
750 × 600 | 30 × 24 | 762 × 610 | - | 610 |
750 × 550 | 30 × 22 | 762 × 559 | - | 610 |
800 × 750 | 32 x 30 | 813 × 762 | - | 610 |
800 × 700 | 32 × 28 | 813 × 711 | 820 × 720 | 610 |
800 × 650 | 32 × 26 | 813 × 660 | - | 610 |
800 × 600 | 32 × 24 | 813 × 610 | 820 × 630 | 610 |
850 × 800 | 34 × 32 | 864 × 813 | - | 610 |
850 × 750 | 34 x 30 | 864 × 762 | - | 610 |
850 × 700 | 34 × 28 | 864 × 711 | - | 610 |
850 × 650 | 34 × 26 | 864 × 660 | - | 610 |
900 × 850 | 36 × 34 | 914 × 864 | - | 610 |
900 × 800 | 36 × 32 | 914 × 813 | 920 × 820 | 610 |
900 × 750 | 36 x 30 | 914 × 762 | - | 610 |
900 × 700 | 36 × 28 | 914 × 711 | 920 × 720 | 610 |
950 × 900 | 38 × 36 | 965 × 914 | - | 610 |
950 × 850 | 38 × 34 | 965 × 864 | - | 610 |
950 × 800 | 38 × 32 | 965 × 813 | - | 610 |
950 × 750 | 38 x 30 | 965 × 762 | - | 610 |
1000 × 950 | 40 × 38 | 1016 × 965 | - | 610 |
1000 × 900 | 40 × 36 | 1016 × 914 | 1020 × 920 | 610 |
1000 × 850 | 40 × 34 | 1016 × 864 | - | 610 |
1000 × 800 | 40 × 32 | 1016 × 813 | 1020 × 820 | 610 |
1050 x1000 | 42 × 40 | 1067 x 1016 | - | 610 |
1050 × 950 | 42 × 38 | 1067 × 965 | - | 610 |
1050 × 900 | 42 × 36 | 1067 × 914 | - | 610 |
1050 × 850 | 42 × 34 | 1067 × 864 | - | 610 |
1100 x 1050 | 44 × 42 | 1118 x 1067 | - | 610 |
1100 x1000 | 44 × 40 | 1118 x 1016 | 1120 x 1020 | 610 |
1100 × 950 | 44 × 38 | 1118 × 965 | - | 610 |
1100 × 900 | 44 × 36 | 1118 × 914 | 1220 × 920 | 610 |
1150 x 1100 | 46 × 44 | 1168 x 1118 | - | 711 |
1150 x 1050 | 46 × 42 | 1168 x 1067 | - | 711 |
1150 x1000 | 46 × 40 | 1168 x 1016 | - | 711 |
1150 × 950 | 46 × 38 | 1168 × 965 | - | 711 |
1200 x 1150 | 48 × 46 | 1220 x 1168 | - | 711 |
1200 x 1100 | 48 × 44 | 1220 x 1118 | 1220 x 1120 | 711 |
1200 x 1050 | 48 × 42 | 1220 x 1067 | - | 711 |
1200 x1000 | 48 × 40 | 1220 x 1016 | 1220 x 1020 | 711 |
